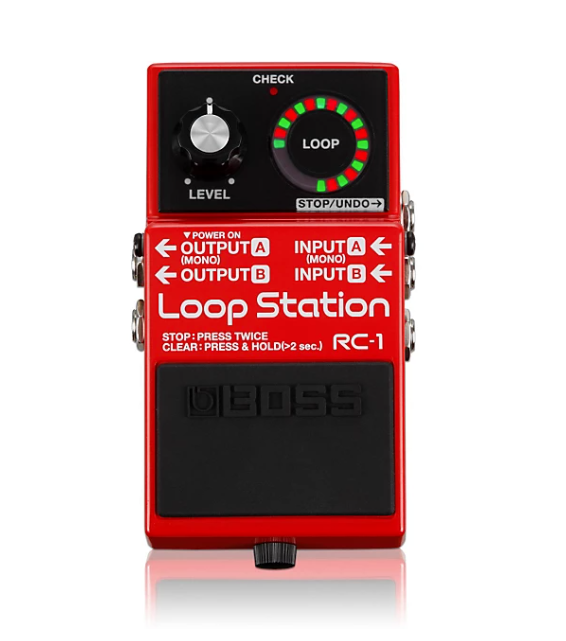

BOSS RC-1 Loop Station Effects Pedal

The BOSS RC-1 Loop Station gives musicians the power to effortlessly craft and perform layered musical masterpieces. This compact yet robust looper pedal offers up to 12 minutes of pristine stereo recording time and unlimited overdubbing, allowing artists to explore a kaleidoscope of creative possibilities. With its precision-engineered quality and convenient battery or AC power, the RC-1 Loop Station is the perfect studio and stage companion for instrumentalists and vocalists alike.

• Straightforward and easy to operate
• Newly designed loop indicator displays the current loop mode (Rec/Overdub/Play)
• Runs on a single 9-volt alkaline battery (approximately 4.5 hours of battery life)
• Can be used with an optional AC adapter (PSA series: sold separately)
• 12 minutes of stereo recording time
• Stereo inputs and outputs
• Flexible external footswitch options
• Recorded phrase is retained in memory even after the RC-1 is turned off
• Nominal Input Level: –20 dBu
• Input Impedance: 1 mohm
• Nominal Output Level: –20 dBu
• Output Impedance: 1 kohm
• Recommended Load Impedance: 10 kohms or greater
• Controls: Pedal switch, LEVEL knob
• Indicators: CHECK indicator, LOOP indicator

Connectors

• INPUT A (MONO) jack: 1/4" phone type
• INPUT B jack: 1/4" phone type
• OUTPUT A (MONO) jack: 1/4" phone type
• OUTPUT B jack: 1/4" phone type
• STOP/UNDO jack: 1/4" TRS phone type
• DC IN jack

Power Supply

• Alkaline battery (9V, 6LR61)
• AC adaptor (PSA series: sold separately)
• *Rechargeable Ni-MH batteries cannot be used

Current Draw

• 85 mA
• Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
• Alkaline: Approx. 4.5 hours

Dimensions WxHxD

• 2-7/8" x 5-1/8" x 2-3/8"

Weight (including battery)

• 1 lb.

Accessories

• Owner's manual
• Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
• Alkaline battery (9V, 6LR61)
